Home motherboardsASUS TUF GAMING B550-PLUS WIFI II AM4 ATX AM4

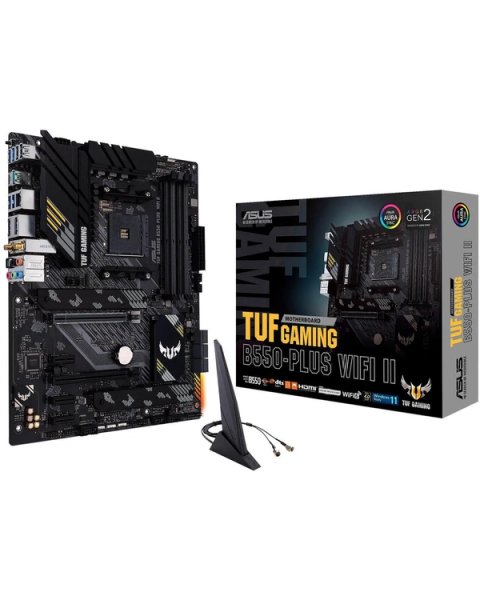

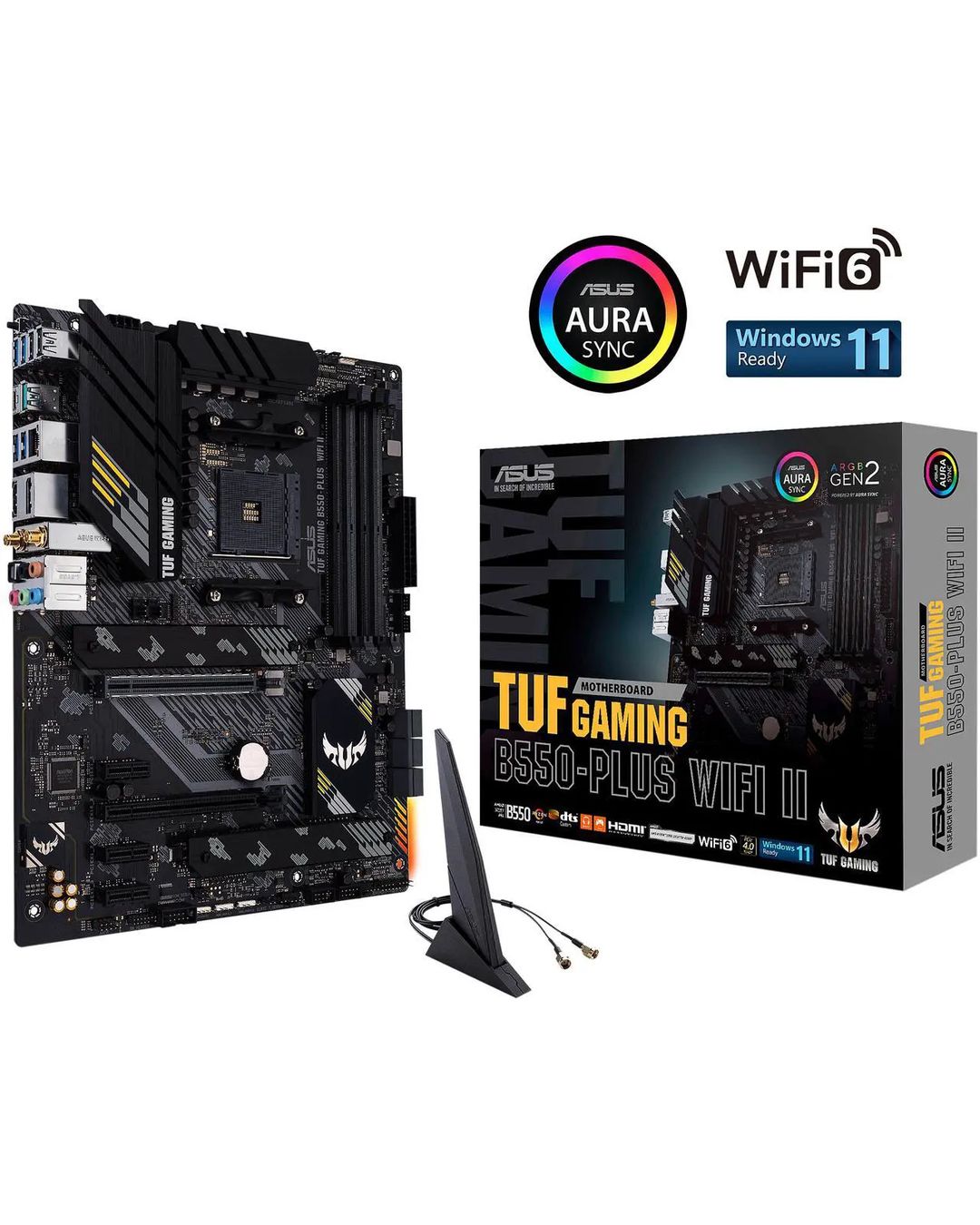

ASUS TUF GAMING B550-PLUS WIFI II AM4 ATX AM4

250,000 IQD

275,000 IQD-9%

Brand:ASUS

Model:TUF GAMING B550-PLUS WIFI II

Supported CPU

CPU Socket Type:AM4

CPU Type:Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors *

Chipsets

Chipset:AMD B550

Memory

Number of Memory Slots:4x288pin (DDR4)

Memory Standard:DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

Maximum Memory Supported:128GB

Channel Supported:Dual Channel

Memory Performance Profile:Intel XMP 2.0

ECC Supported:ECC Memory (ECC mode) support varies by CPU.

Buffer Supported:Un-buffered

Expansion Slots

PCI Express 4.0 x16:1 x PCI Express 4.0 x16*

PCI Express 3.0 x16:1 x PCI Express 3.0 x16*

* Supports x4 mode.

PCI Express x1:3 x PCIe 3.0 x1 *

Storage Devices

Serial ATA (SATA):6 x SATA 6Gb/s

M.2:AMD Ryzen 5000 Series / 3000 Series Desktop Processors:

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

Onboard Video

Onboard Video Chipset:Supported only by CPU with integrated graphic

Onboard Audio

Audio Channels:7.1 Channels

Onboard LAN

LAN Chipset:Realtek 2.5Gb Ethernet

Max LAN Speed:2.5Gbps

Wireless LAN:Wi-Fi 6

802.11a/b/g/n/ac/ax

Bluetooth:Bluetooth 5.2

Rear Panel Ports

Back I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

Internal I/O Connectors

Onboard USB 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Other Connectors Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt header

Physical Spec

Form Factor:ATX

LED Lighting:RGB

Dimensions (W x L):12.0" x 9.6"

Power Pin:1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Software Feature

Windows 11:Ready

Features

Features Special Features:

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- Procool

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Software Features:

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

PC Cleaner

- EZ update

- System Information

Aura Creator

TUF GAMING CPU-Z

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Operating System:

Windows 10 64-bit, Windows 11 64-bit

Packaging

Package Contents Accessories:

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package(s)

1 x M.2 SSD screw package(s)

1 x TUF Gaming sticker

1 x ASUS 2x2 dual-band Wi-Fi moving antennas

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User manual

✅ In Stock (1 available)

Quantity:
